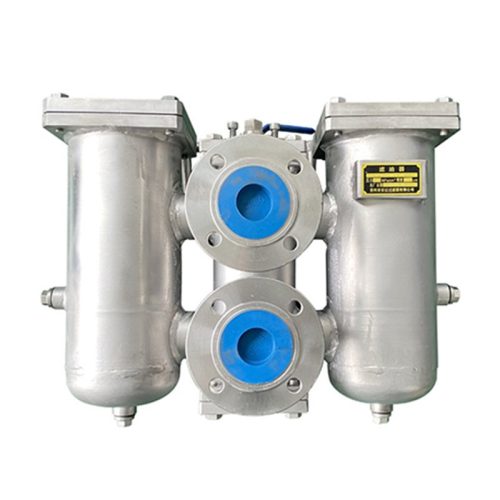

SRLF Duplex Return Line Filter Series

The SRLF Duplex Return Line Filter Series provides continuous filtration for critical industrial processes with a redundant, duplex filter design. Two cartridge filters are installed in parallel on the return line, allowing one filter to filter the fluid while the other is isolated for servicing. An automatic control valve switches between the filters to provide uninterrupted filtration. The cartridge filters trap and removes particles from returning fluid to protect your pumps, valves, and other system components. Many micron ratings and cartridge styles are available to match your specific application requirements.

Get A Free Quote

Share to

Introduction

The SRLF series filter is composed of two single bowl filters and a 2-position 6-way directional valve. It is simple in structure and easy to use. There is by-pass valve and a contamination indicator in it for protecting the hydraulic system safety.

The feature of this filter allows continues operation even during replacing elements clogged by contaminants. Turning the directional valve, another filter will be working in the hydraulic system, the clogged element should be changed in time.

This series filter is widely used in the hydraulic systems of heavy-duty, mining and metallurgical machines.

Technical Parameters

Model	Flow rate (L/min)	filtration accuracy (μm)	Dia (mm)	Press. (MPa)	Pressure loss(MPa)		Indicator power	Weight (Kg)	Model of element
Model	Flow rate (L/min)	filtration accuracy (μm)	Dia (mm)	Press. (MPa)	Initia	Max	Indicator power	Weight (Kg)	Model of element
SRLF-60x*P	60	1 3 5 10 20 30	25	1.6	<=0.08	0.35	24V/48W 220V/50W	13.2	SFX-60 X *
SRLF-110x*P	110		25					13.7	SFX-110 X *
SRLF-160x*P	160		40					29.5	SFX-160 X *
SRLF-240x*P	240		40					32	SFX-240 x *
SRLF-330 x*P	330		50					52.5	SFX-330 x *
SRLF-500 x*P	500		50					58.5	SFX-500 x *
SRLF-660 x*P	660		80					77	SFX-660 x *
SRLF-850x*P	850		80					81	SFX-850 x *
SRLF-950x*P	950		100					112	SFX-950 x *
SRLF-1300 x*P	1300		100					121	SFX-1300 x *

Note:*is represents filtration. If the filter fluid is water-glycol, usage pressure 1.6MPa, flower rate 110L/min, filtration accuracy 10 um and the filter equipped with indicator.The model of the filter is SRLF.BH-110X10P, the model of element is SFX .BH-110X10

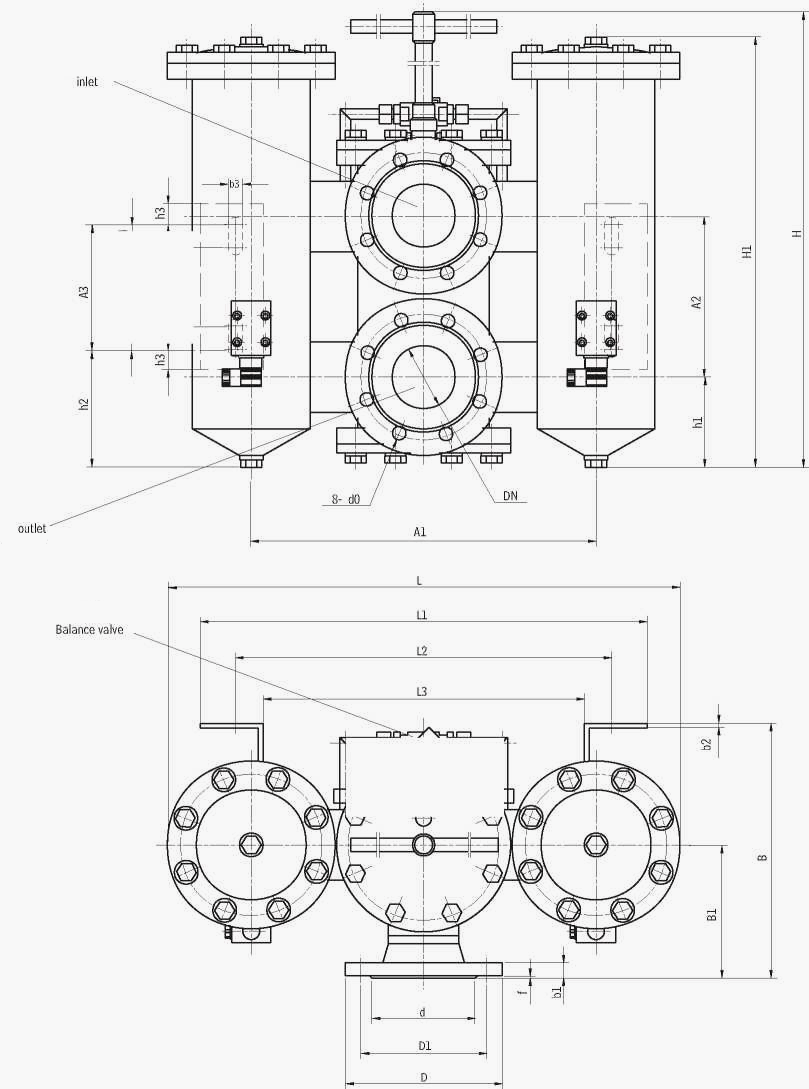

Connection Size

Table I

Model	Size (mm)
	DN	D	D1	d	d0	f	b1	A2	h1	B1	L1	L2	L3	B	b2	h2	h3	h4	A3	b3	L	A1	H*	H1
SRLF-60x*P	25	92	68	50	11	2	14	98	60	100	168	232	204	160	4	65	16	20	90	11	316	200	258	222
SRLF-110x*P																								289
SRLF-160x*P	40	120	92	72	13.5			125	76	120	230	350	250	6	75	20	30	120	14	405	270	361	293
SRLF-240x*P																							352
SRLF-330x*P	50	140	110	90	145			90	130	254	380	340	280		90	486	310	395	368
SRLF-500x*P																			449

Table II

Model	Size (mm)
	DN	D	D1	d	d0	f	b1	A2	h1	B1	L1	L2	L3	B	b2	h2	h3	h4	A3	b3	L	A1	H	H1
SRLF-660 x * P	80	200	160	133	17.5	3	20	205	115	170	325	520	480	410	6	150	25	30	160	18	654	440	790	548
SRLF-850x *P																								630
SRLF-950x*P	100	220	180	158				225	132	190	360	630	560	470		130	30	40	300	22	774	520	840	609
SRLF-1300 x*P																								728

SRLF Duplex Return Line Filter Series

Introduction

Technical Parameters

Connection Size

Filtration Effect

Package

After-Sales Service

1 year warranty (charge for human damaged parts)

Lifetime maintenance and spare parts supply

Customized products designed according to your needs

Free training for your staff on equipment installation and operating procedures
